SKU: 6224-MA-C3-B20-FAG

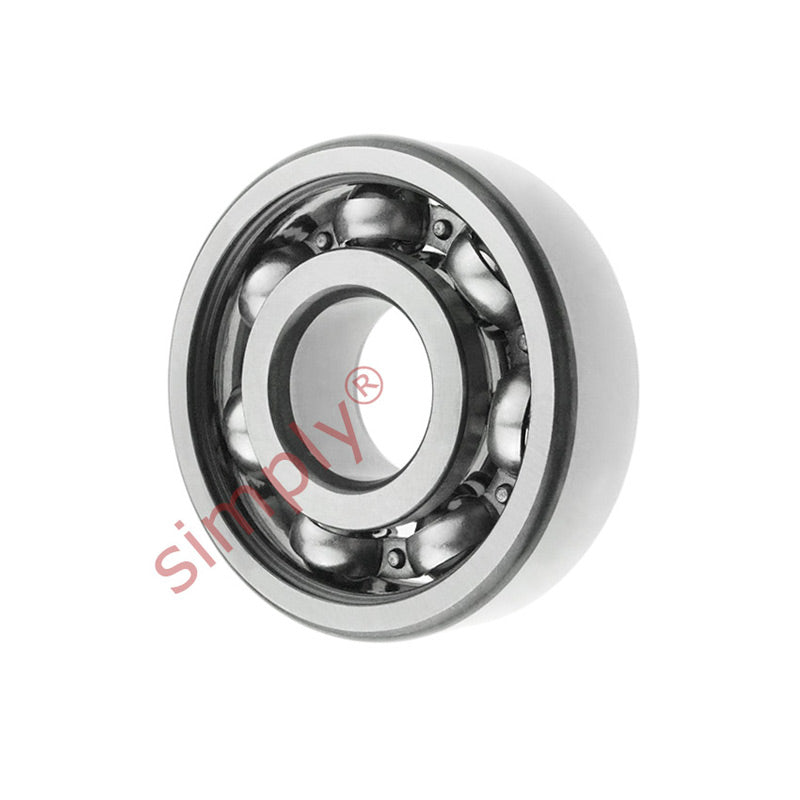

FAG 6224MAC3B20 Open Deep Groove Ball Bearing 120x215x40mm
- Regular price
- €649,10 ex VAT
- Sale price
- €649,10
- Regular price
-
In stock
Quantity Price Breaks
5+
€642,61
10+
€616,65
20+
€603,66
50+
€584,19
100+
€571,21
500+
€538,75
1000+
€454,37
SKU:
6224-MA-C3-B20-FAG
FAG 6224MAC3B20 Open Deep Groove Ball Bearing 120x215x40mm
- Regular price
- €649,10 ex VAT
- Sale price
- €649,10
- Regular price
-
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
Technical
| d | = | 120mm |
| D | = | 215mm |
| B | = | 40mm |
| Dynamic load C | = | 146 kN |
| Static load Co | = | 118 kN |
| Fatigue load limit Pu | = | 3.9 kN |
| Reference speed | = | 6300 rpm |
| Limiting speed | = | 4000 rpm |
| Mass | = | 5.15 kg |
| d1 | = | 151mm |
| D1 | = | 184mm |
| D2 | = | 189mm |
| r1r2 min | = | 2.1mm |
| da min | = | 132mm |
| Da max | = | 203mm |
| ra max | = | 2mm |
| Calc factor Kr | = | 0.025 |
| Calc factor | = | 14 |
