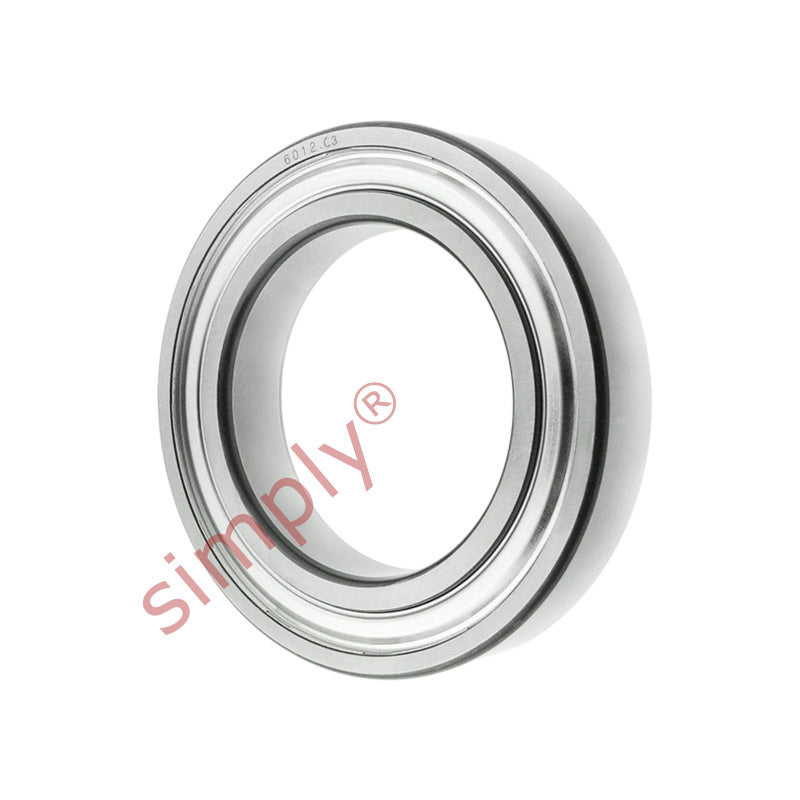

FAG 60122ZC3 Metal Shielded Deep Groove Ball Bearing 60x95x18mm
New
FAG
New
FAG 60122ZC3 Metal Shielded Deep Groove Ball Bearing 60x95x18mm
FAG

SKU: 6012-2Z-C3-FAG

FAG 60122ZC3 Metal Shielded Deep Groove Ball Bearing 60x95x18mm

€31,12 ex VAT
€31,12
ex VAT
Equivalent to: 6012ZZEC3 6012ZZC3 6012.2ZC3 6012KDDC3 6012DDC3 60122ZRC3 6012FFC3
In stock

Quantity Price Breaks

5+ €30,81
10+ €29,56
20+ €28,94
50+ €28,01
100+ €27,39
500+ €25,83
1000+ €21,78
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
FAG 60122ZC3 Metal Shielded Deep Groove Ball Bearing 60x95x18mm
FAG
SKU: 6012-2Z-C3-FAG

FAG 60122ZC3 Metal Shielded Deep Groove Ball Bearing 60x95x18mm

€31,12 ex VAT
€31,12
ex VAT

Description

Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing.
Shields can be removed for applications that only require 1 shield
Benefits: Provides light mechanical protection, limits moisture and dirt ingress, lubricated for life,

Technical

d = 60mm
D = 95mm
B = 18mm
Dynamic load C = 30.7 kN
Static load Co = 23.2 kN
Fatigue load limit Pu = 0.98 kN
Reference speed = 15000 rpm
Limiting speed = 7500 rpm
Mass = 0.42 kg
d1 = 71.3mm
D2 = 86.5mm
r1r2 min = 1.1mm
da min = 66
