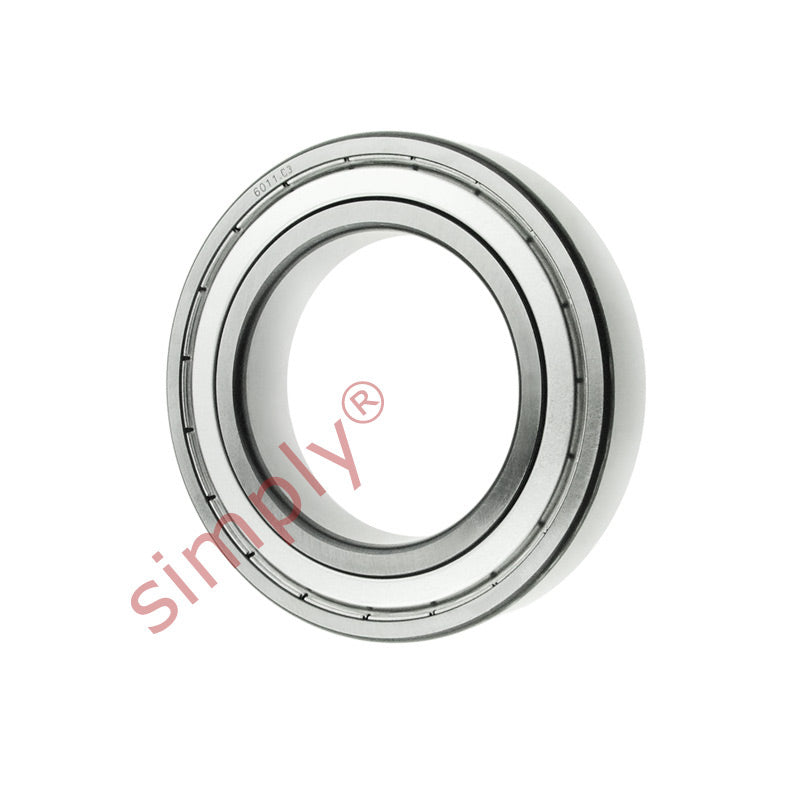

FAG 60112ZC3 Metal Shielded Deep Groove Ball Bearing 55x90x18mm
New
FAG
New
FAG 60112ZC3 Metal Shielded Deep Groove Ball Bearing 55x90x18mm
FAG

SKU: 6011-2Z-C3-FAG

FAG 60112ZC3 Metal Shielded Deep Groove Ball Bearing 55x90x18mm

€25,96 ex VAT
€25,96
ex VAT
Equivalent to: 6011ZZEC3 6011ZZC3 6011.2ZC3 6011KDDC3 6011DDC3 60112ZRC3 6011FFC3
In stock

Quantity Price Breaks

5+ €25,70
10+ €24,66
20+ €24,14
50+ €23,36
100+ €22,84
500+ €21,55
1000+ €18,17
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
FAG 60112ZC3 Metal Shielded Deep Groove Ball Bearing 55x90x18mm
FAG
SKU: 6011-2Z-C3-FAG

FAG 60112ZC3 Metal Shielded Deep Groove Ball Bearing 55x90x18mm

€25,96 ex VAT
€25,96
ex VAT

Description

Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing.
Shields can be removed for applications that only require 1 shield
Benefits: Provides light mechanical protection, limits moisture and dirt ingress, lubricated for life,

Technical

d = 55mm
D = 90mm
B = 18mm
Dynamic load C = 29.6 kN
Static load Co = 21.2 kN
Fatigue load limit Pu = 0.9 kN
Reference speed = 16000 rpm
Limiting speed = 8000 rpm
Mass = 0.39 kg
d1 = 66.3mm
D2 = 81.5mm
r1r2 min = 1.1mm
da min = 61
