SKU: 6003-2Z-NR-C3-FAG

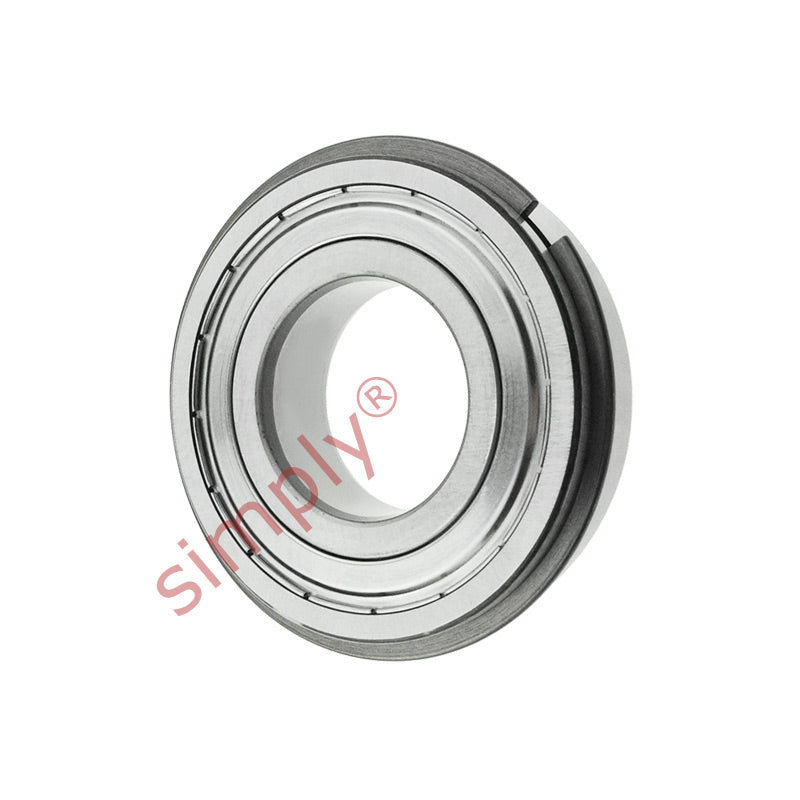

FAG 60032ZNR/C3 Metal Shielded Snap Ring Deep Groove Ball Bearing 17x35x10mm
- Regular price
- €36,33 ex VAT
- Sale price
- €36,33
- Regular price
-
In stock
Quantity Price Breaks
5+
€35,97
10+
€34,51
20+
€33,79
50+
€32,70
100+
€31,97
500+
€30,15
1000+
€25,43
SKU:
6003-2Z-NR-C3-FAG
FAG 60032ZNR/C3 Metal Shielded Snap Ring Deep Groove Ball Bearing 17x35x10mm
- Regular price
- €36,33 ex VAT
- Sale price
- €36,33
- Regular price
-
Description
|
Metal Shielded Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured with metal shields offering some protection against mechanical damage and serving to retain the lubricant in the sealed for life bearing. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |

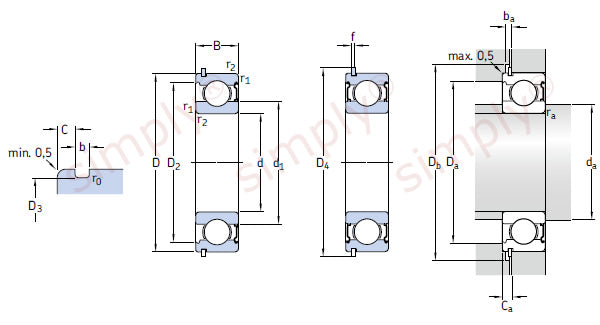

Technical
| d | = | 17mm |
| D | = | 35mm |
| B | = | 10mm |
| Dynamic load C | = | 6.37 kN |
| Static load Co | = | 3.25 kN |
| Fatigue load limit Pu | = | 0.137 kN |
| Reference speed | = | 45000 rpm |
| Limiting speed | = | 22000 rpm |
| Mass | = | 0.039 kg |
| d1 | = | 23mm |
| D2 | = | 31.4mm |
| r1r2 min | = | 0.3mm |
| da min | = | 19 |
