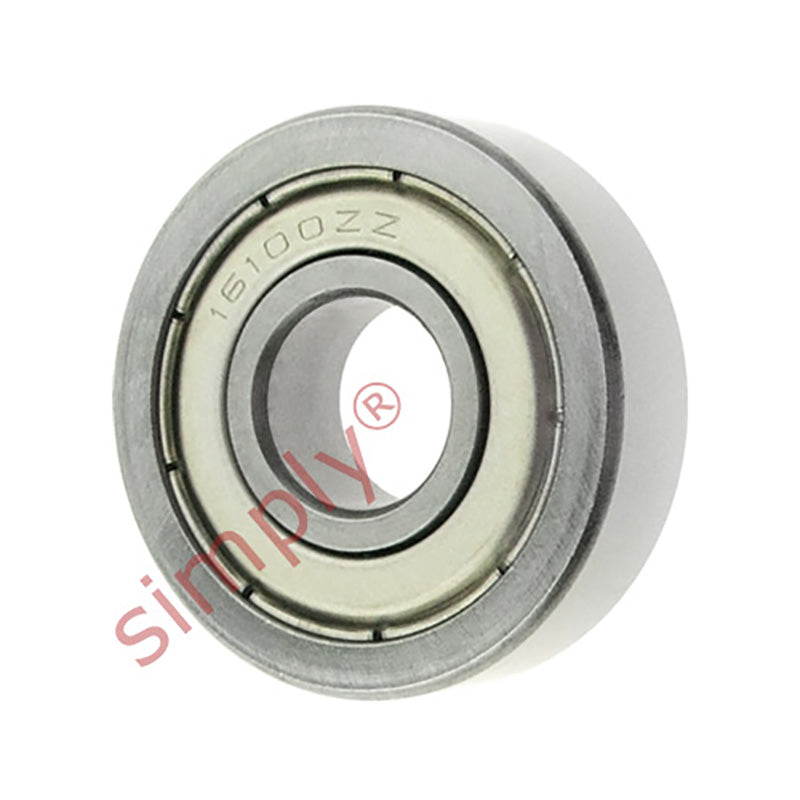

FAG 161002Z Metal Shielded Deep Groove Ball Bearing 10x28x8mm
New
FAG
New
FAG 161002Z Metal Shielded Deep Groove Ball Bearing 10x28x8mm
FAG

SKU: 16100-2Z-FAG

FAG 161002Z Metal Shielded Deep Groove Ball Bearing 10x28x8mm

€15,54 ex VAT
€15,54
ex VAT
Equivalent to: 16100ZZE 16100ZZ 16100.2Z 16100KDD 16100DD 16100FF 161002ZR
In stock

Quantity Price Breaks

5+ €15,38
10+ €14,76
20+ €14,45
50+ €13,99
100+ €13,68
500+ €12,90
1000+ €10,88
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
FAG 161002Z Metal Shielded Deep Groove Ball Bearing 10x28x8mm
FAG
SKU: 16100-2Z-FAG

FAG 161002Z Metal Shielded Deep Groove Ball Bearing 10x28x8mm

€15,54 ex VAT
€15,54
ex VAT

Description

Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing.
Shields can be removed for applications that only require 1 shield
Benefits: Provides light mechanical protection, limits moisture and dirt ingress, lubricated for life,

Technical

d = 10mm
D = 28mm
B = 8mm
Dynamic load C = 4.62 kN
Static load Co = 1.96 kN
Fatigue load limit Pu = 0.083 kN
Reference speed = 63000 rpm
Limiting speed = 32000 rpm
Mass = 0.022 kg
d1 = 17mm
D2 = 24.8mm
r1r2 min = 0.6mm
da min = 14.2
